Profit from the variety of ways to extend ASi cable runs to 1000 m for example. Use the ASi Bus Termination, ASi Tuner and ASi Repeaters to extend the range of the ASi network flexibly and cost-effectively.

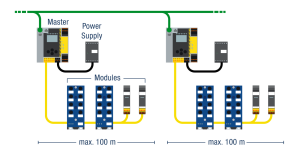

Splitting into Several Segments
- Dividing the ASi cable into multiple 100 m networks with their own Master and own power supply or by using double masters
- Short ASi cables minimize interference susceptibility
- Retains all the advantages of a 100 m ASi network
- Not possible without an upper bus system

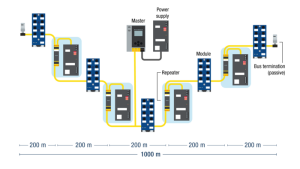

Very long ASi cables by combining ASi Repeaters and ASi Bus Terminations
- ASi cables with a length of for example 1000 m using ASi Repeaters and ASi Bus Terminations
- Maximum 2 ASi Repeaters in a row due to increased signal propagation time
Signal Extension with ASi repeaters in Combined ASi-3/ASi-5 Installations
- Extension of the ASi cable by up to 100 m with ASi repeaters, or 200 m with integrated ASi-3 bus termination possible
- Areas with very high EMC interference can be bridged
- ASi repeaters cause a certain delay of each telegram, therefore only max. 2 ASi repeaters in series are possible
- From the first ASi repeater no more ASi-5 communication is possible
