ASi-5 Module for Rockwell Frequency Inverter
With the ASi-5 motor module for the PowerFlex 525 frequency inverter (BWU4369), ramps and speed for process control can be changed cyclically thanks to ASi-5 and thus adapted extremely quick. An optimized process data image is available for this purpose. The feedback from the motor is also very comprehensive thanks to ASi-5. In addition to the error flags, the cyclical input data also includes, for example, the current consumption of the motor for evaluation.
Active Distributor ASi-5 for Rockwell Frequency Inverter

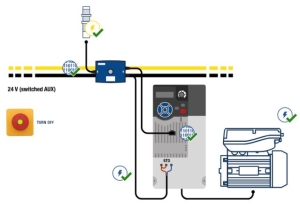

With the ASi-5 active distributor (BWU4104), you can control the PowerFlex 525 frequency inverter efficiently. ASi-5 makes it possible to change ramps and speed for process control cyclically and thus adapt them very quickly. An optimized process data image is available for this purpose. You also benefit from the ability to easily create passive safety up to PLd/SIL2. The PowerFlex 525 can be safely switched off via Safe-Torque-Off (STO). By switching off the AUX auxiliary power, all connected or individual actuators are no longer supplied with auxiliary power. This allows individual or multiple drives to be switched off safely and cost-effectively.
The wiring costs are also significantly lower with ASi than with other fieldbus systems – thanks to profile cables and piercing technology. Further advantages of passive safety with Bihl+Wiedemann: The sensors can always be read out in the event of a safety incident. Communication with the frequency inverter is also continued in order to continue receiving diagnostic information.
Save Time and Costs, Avoid Parameterization Errors
With the ASi-5 motor module BWU4369 and the active distributor ASi-5 BWU4104, you will, of course, benefit from the classic ASi advantages, e.g., drastically reduced wiring effort. A further advantage results from the use of our Bihl+Wiedemann Software Suite: Once you have configured an ASi-5 motor module and stored the Rockwell parameters, you can simply copy this information to numerous other ASi-5 motor modules. All motor parameters are automatically downloaded during commissioning. Parameterization is also automatic when motors and motor modules are replaced. This saves a lot of time and costs and also avoids possible parameterization errors.
Your advantages at a glance
- One Rockwell frequency inverter can be controlled per module
- Detailed diagnostics incl. motor current
- Cyclical writing of speeds and ramps in 1.27 ms
- Acyclic writing of Rockwell parameters
