New ASi-5 Counter Modules – Cost-Effective Solutions for a Wide Range of Applications
What is New About the ASi-5 Counter Modules?
We have extended our range of ASi-5 counter modules with numerous functions, such as measurement of frequency and period duration. Another new feature is the 32-bit value range, which can be selected as an alternative to the fast transmission of 4 independent 16-bit counter values in 1.27 ms. All ASi-5 counter modules work with counter frequencies of up to 250 kHz max.
Thanks to their high flexibility – all 4 counter inputs can be configured and parameterized individually – our ASi-5 counter modules can be used to find cost-effective solutions for a wide range of applications. And since you can use IP67 variants directly in the field, you also benefit from all the proven ASi advantages – especially from dramatically reduced wiring complexity.

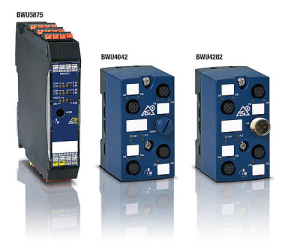

Our ASi-5 Counter Modules in IP67 and IP20
The ASi-5 counter module is available for direct use in the field as IP67 variants with ASi connection via profile cable (BWU4042) or via M12 connector (BWU4202). It is also available for the switching cabinet in IP20 (BWU3875).
Many Flexibly Usable Functions
Thanks to numerous functions and the four individually adjustable counter inputs of the flexible ASi-5 counter modules, you can find cost-effective solutions for a wide range of applications. Various counter functions as well as frequency and period duration measurement enable, for example, simple counting of loose goods, positioning tasks, speed measurement and much more.
Fig.: Thanks to numerous functions and 4 individually adjustable counter inputs, you can find cost-effective solutions for a wide range of applications with ASi-5 counter modules.
