The latest gateways, cost-saving input modules, and the first configurable I/O module with 2 safe outputs are available

ASi-5 Safety is certified and ready for use and complements optimally the established ASi Safety. The latest Safety generation can be easily integrated into existing solutions. Main advantage of ASi-5 Safety: You can use many safe and non-safe signals under just a single address.

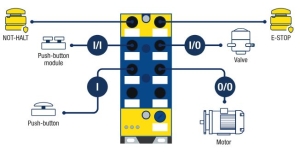

Discover now our new ASi-5/ASi-3 Gateway family with integrated ASi-5 Safety – as well as the first ASi-5 Safety input modules, each with 4 x 1 channel or 2 x 2 channel safe inputs and up to 12 standard signals. With them, you can, for example, implement cost-effectively the connection of an operating panel to ASi – with several light buttons, an emergency stop button and a safe key switch.

The first configurable ASi-5 Safety Module with up to 14 safe inputs and 2 safe outputs (up to PLe) is a true “all-rounder”. The safe inputs can be configured for almost any sensor, whether OSSD or floating contacts – each as standard or antivalent switches. Thanks to this maximum flexibility, you can use the I/O module for almost all safety applications. Another advantage: Cyclic diagnostics of the safe inputs and outputs are always provided.

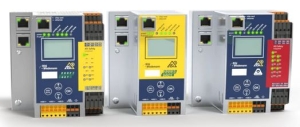

ASi-5/ASi-3 Safety Gateways are currently the most advanced ASi masters – thanks in part to their chip card, which makes it easy to replace devices: if you insert the card into a new gateway with the same article number, all previous information is transferred: the safety and hardware configuration, parameter data of connected devices, and user comments. Many different variants are available: ASi-5/ASi-3 Safety Gateways for Ethernet-based fieldbus systems with and without safe fieldbus communication and with and without integrated safe local I/Os.

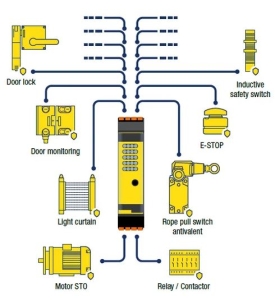

Configurable ASi-5 Safety I/O Module for flexible use in almost all applications

The first flexibly configurable ASi-5 Safety Module BWU4277 with up to 14 safe inputs and 2 safe outputs (up to PLe) can be used for almost all safety applications. The safe inputs can be configured for almost any sensor, whether OSSD or floating contacts – in each case as standard or antivalent switches.

ASi-5 Safety input modules cost-saving for many applications

The ASi-5 Safety Modules with 2 safe inputs are comparable in price with our ASi-5 modules, which only have standard I/Os. This allows you to significantly reduce machine costs.
